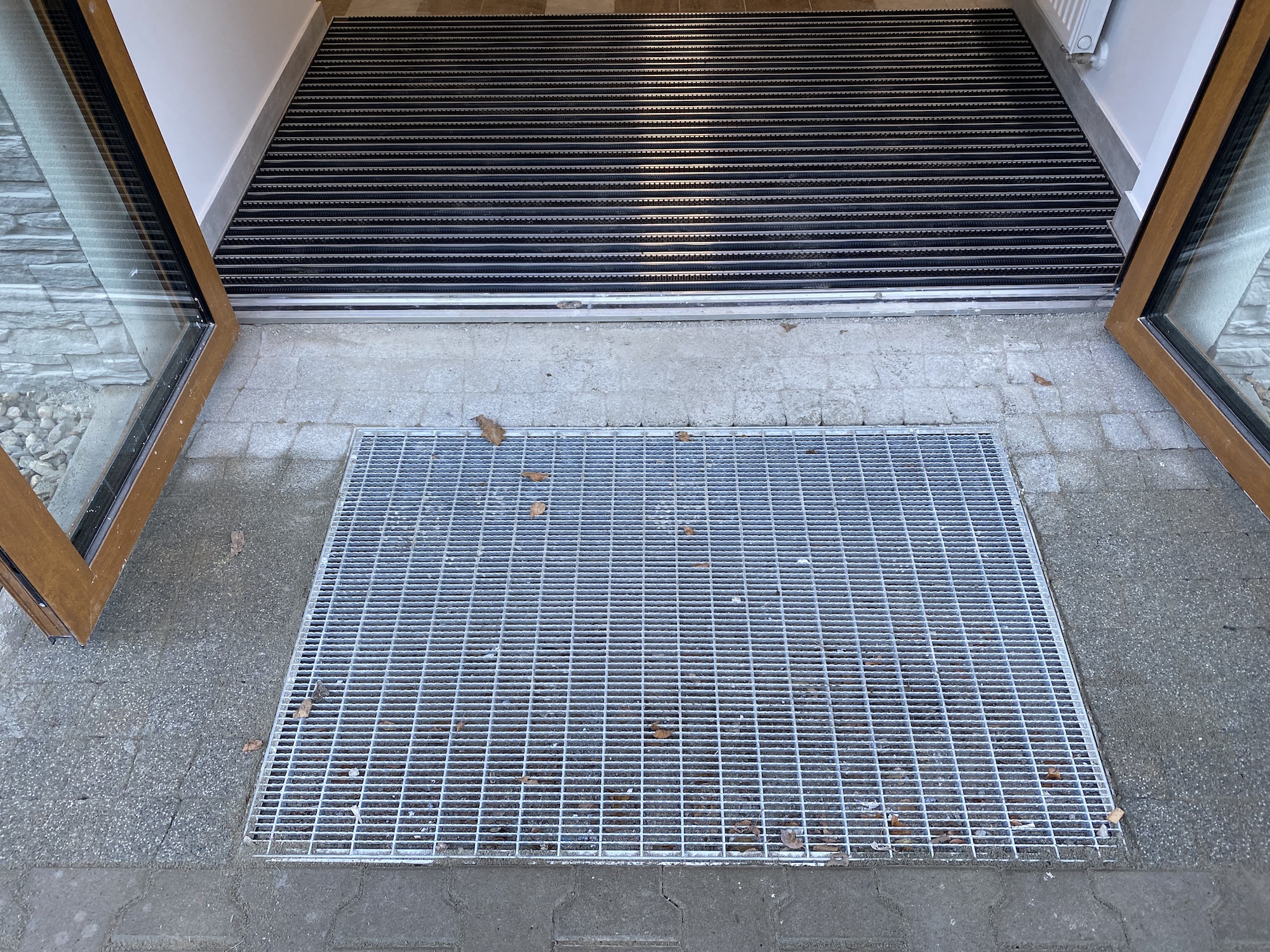

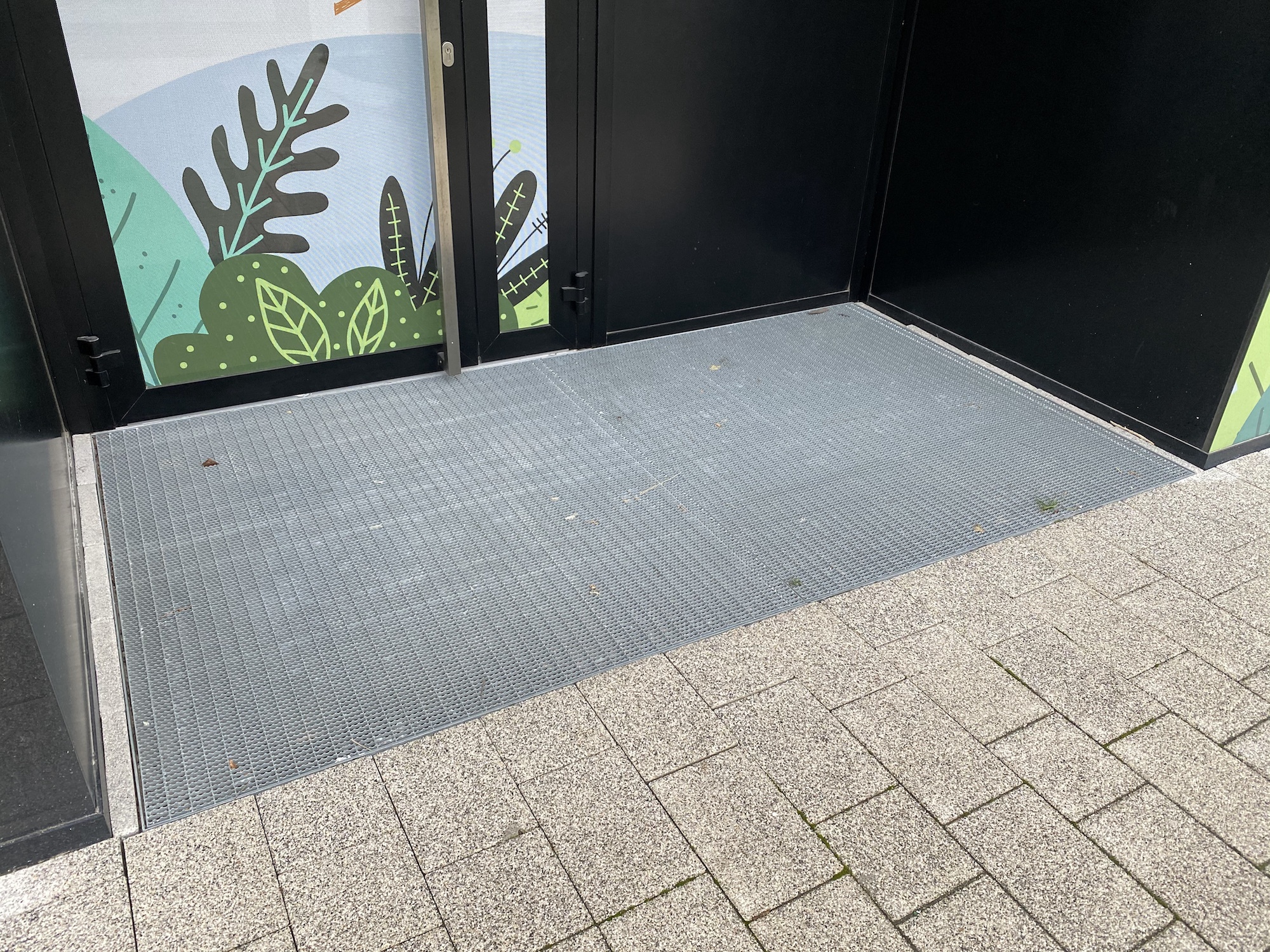

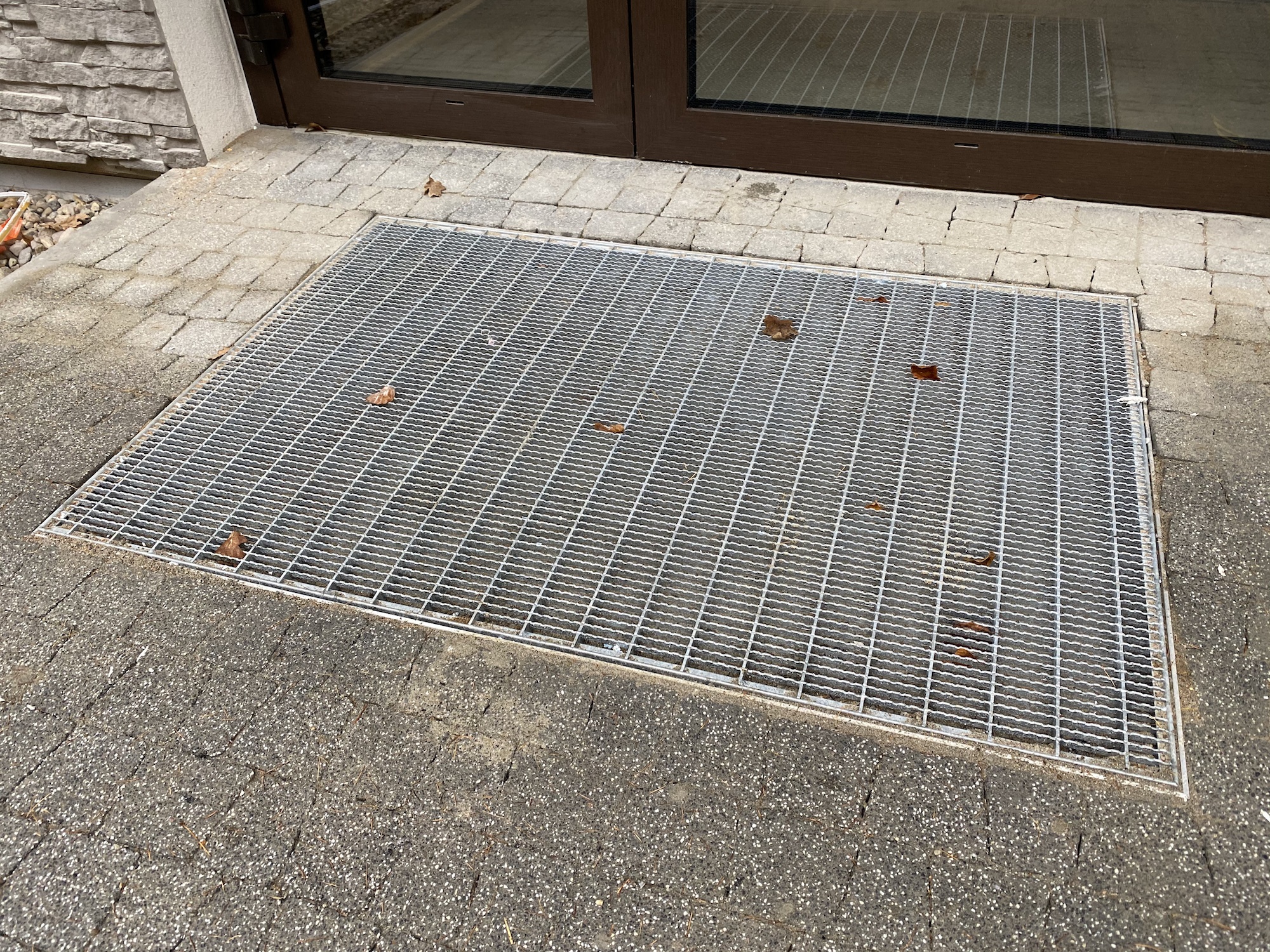

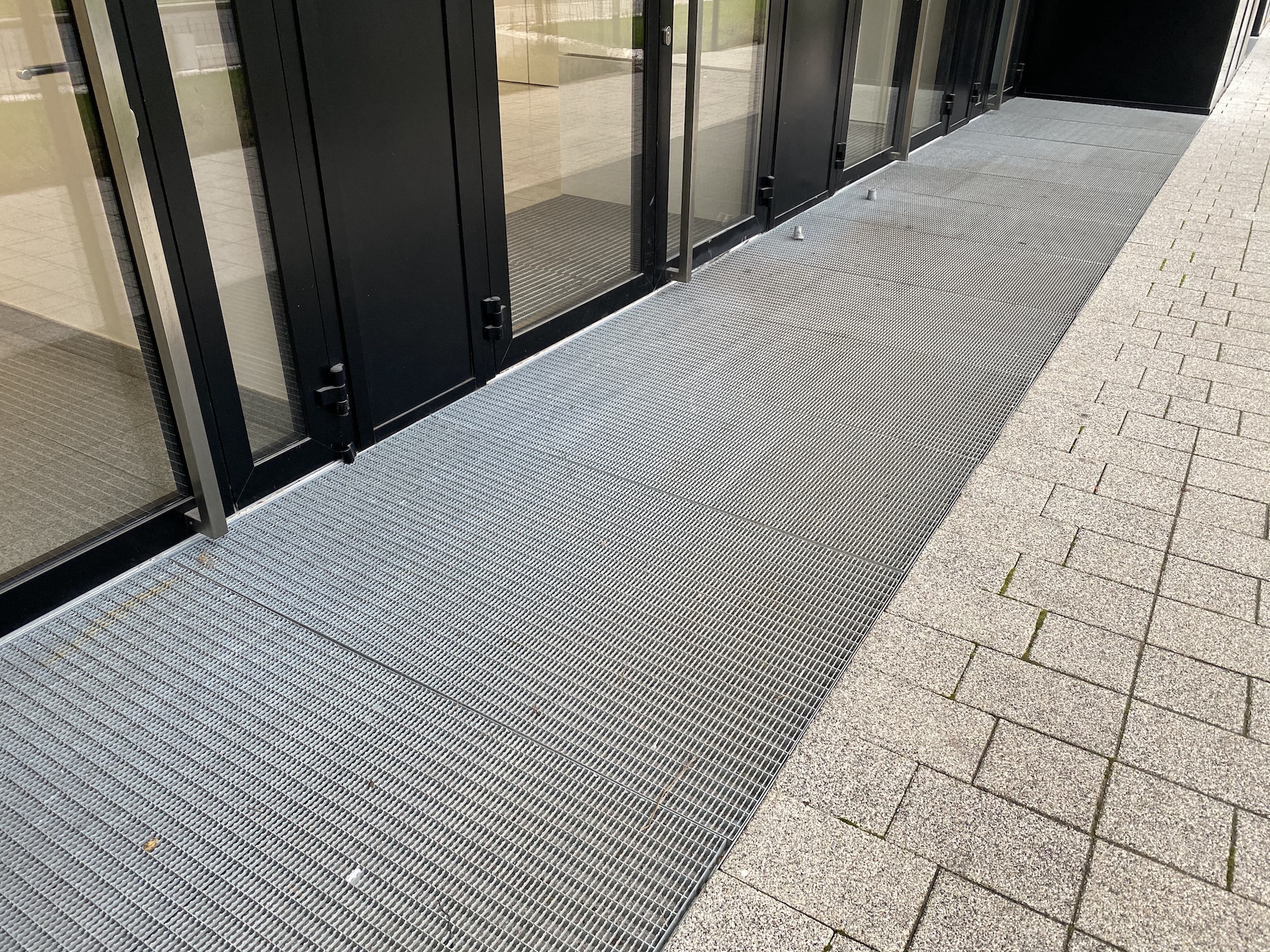

Galvanized steel grilles
Our galvanized steel grilles are traditional solutions created to keep floors clean and neat. This modern construction mixed with stylish design is perfect for places with an intensive pedestrian traffic because of its durability.
Grille doormats owe their modern look to the material - they are made of galvanized steel. It is an alloy resistant to all weather conditions and thanks to these properties it maintains its bright, vivid colour for years. The steel construction is very durable.
This type of product has a large dirt capacity, so it does not require frequent cleaning. This is an alternative solution to aluminium doormats. They can be used with Unimat HomeCleaner 70 or Unimat TrapSystem80. Moreover, you can choose frame UR 20.
Anti - slipping profiles
The doormat construction is two rows of intersecting steel plates. The thicker ones are responsible for the strength of the whole structure, while the skinnier ones with cut-out profiles are responsible for cleaning the shoes. The latter also have an anti-slip effect. The standard eyelet has dimensions of 55 x 11 mm, height 20 mm, supporting flat bar 3 mm.
Grilles are placed in sediment traps made in the floor or pavement. We make sets in several basic dimensions, but you can also order doormats in non-standard lengths and widths. Unimat 20 KRATA doormat has wide, universal use as the first doormat in the cleaning line for facilities of any traffic intensity. In order to achieve a large cleaning field, the doormats are arranged side by side in a common frame. They are designed for indoor and outdoor use.
Basic technical data
Unimat 20 KRATA 60x40
- commercial dimensions in cm: 60 x 40
- precise dimensions in mm: 590 x 390
- height: 20 mm
- weight: ok. 5,5 kg
Unimat 20 KRATA 75x50
- commercial dimensions in cm: 75 x 50
- precise dimensons in mm: 740 x 490
- height: 20 mm
- weight: ca 8,5 kg
Unimat 20 KRATA 100x50
- commercial dimensions in cm: 100 x 50
- precise dimensons in mm: 986 x 486
- height: 20 mm
- weight: ca 10,5 kg
Unimat 20 KRATA 120x80
- commercial dimensions in cm: 120 x 80
- precise dimensons in mm: 1190 x 790
- height: 20 mm
- weight: ca 20 kg
Other sizes e. g. 33 x 11 cm, 44 x 11 cm are available on request. The dimensional tolerance is +/-4 mm. We also make structures with other heights than the standard, e. g. 25 mm.
Note: When designing a cleaning field with Unimat 20 KRATA doormats, the exact dimensions of the individual modules must always be taken into account. If you have any doubts or queries please contact us.
Our sedimentation traps
A complete drainage system is a product that solves the problem of draining water, sand etc. into the space underneath the doormat significantly increasing the dirt capacity of the doormat and saving cleaning time. Therefore, in many facilities the best solution is to use complete systems with drainage.
We offer systems with different parameters. We are also flexible when it comes to the configuration of cleaning inserts - in this respect we adapt to the Customer's expectations.
Performance of stainless-steel doormats
The galvanized steel grilles are built with attention to detail with great structural strength. The galvanization process creates a strong zinc coating that goes deep into the steel. It forms multiple protective layers. The grilles stay resistant to rust and damage when exposed to moisture.
Our galvanized stainless-steel gratings meet strict safety rules. The anti-slip surface stays effective when wet. People can walk safely when raining. The doormat prevents slipping accidents.
Installation of the galvanized steel grilles
The galvanized steel doormats work well in new buildings and renovation work. It is easy to fit them into unusually shaped entrance spaces. They can be arranged in different patterns to cover the whole area. You can connect them to existing drainage systems. They adapt to common types of floor.
The strong construction handles heavy trolleys and light machinery. The galvanized stainless-steel gratings require very little maintenance. The coating protects the metal for several dozens of years.
The stainless-steel doormats work well in busy places with constant foot traffic. They last many years with minimal upkeep. This makes them perfect for entrances to offices, shopping centers, schools, hospitals and train stations. For the best effect, use them with complete sedimentation systems with drainage.
